SPL Phonitor SE

This is the analog only version, see our DAC768xs listing for the optional digital DA installed.

Finish Options

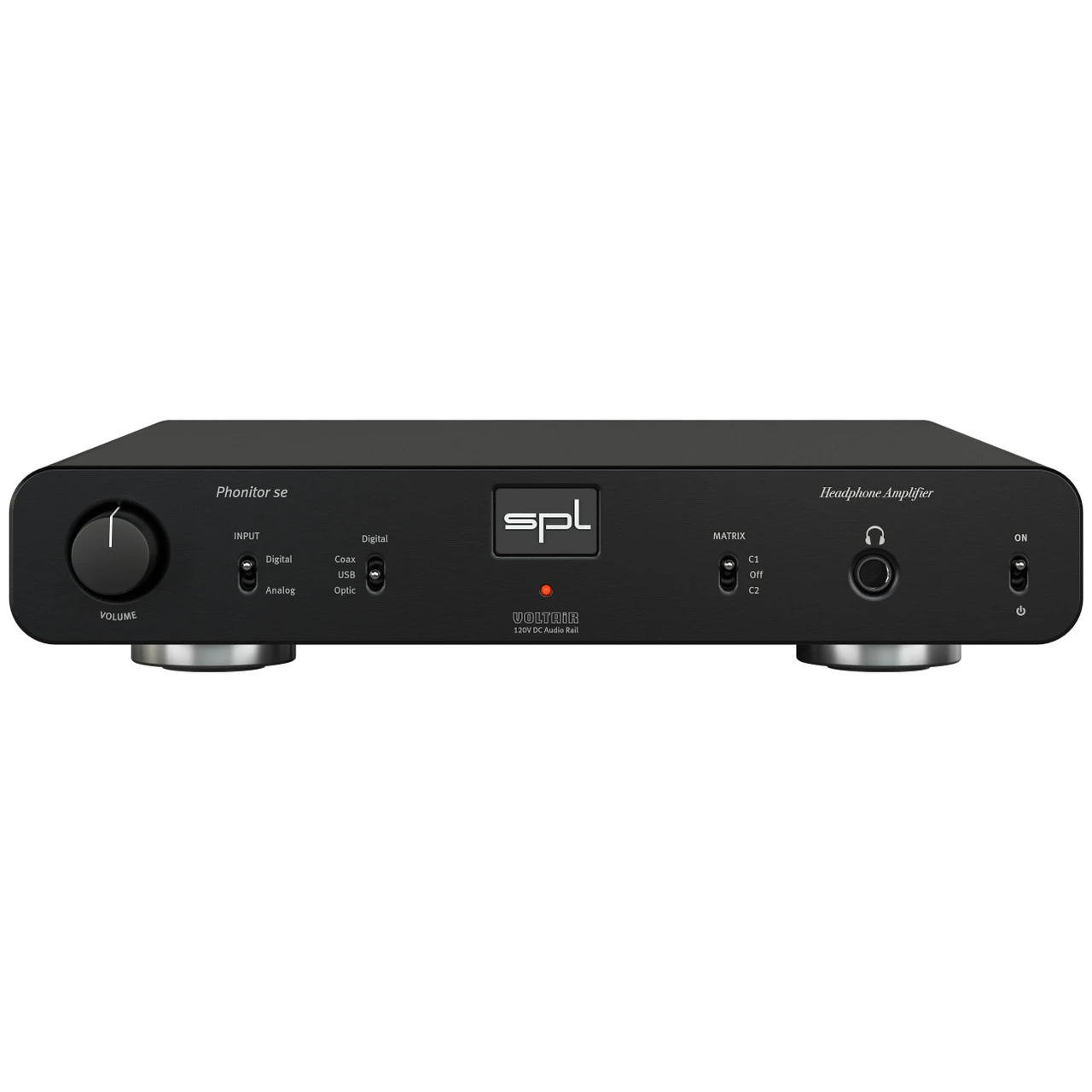

• Black

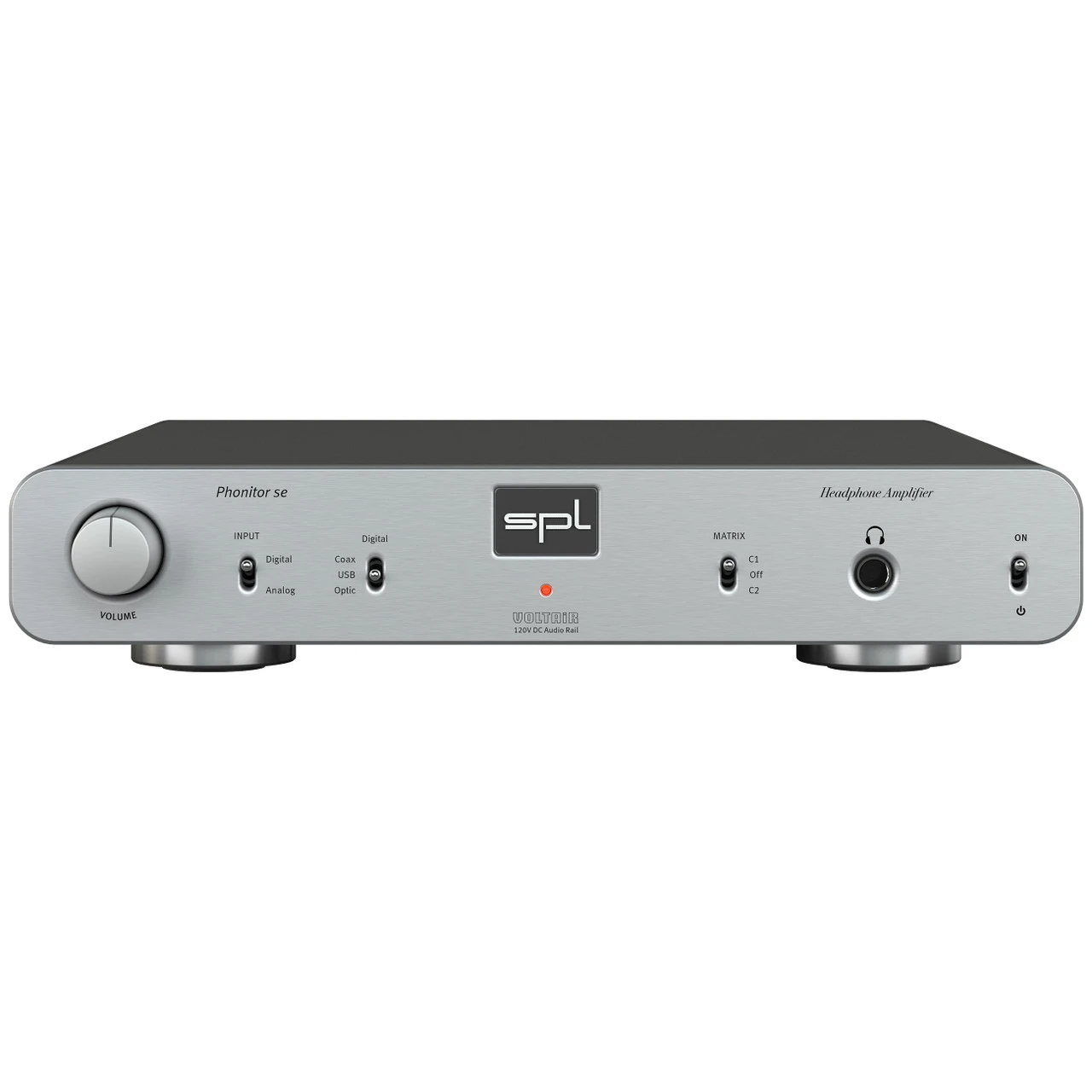

• Silver

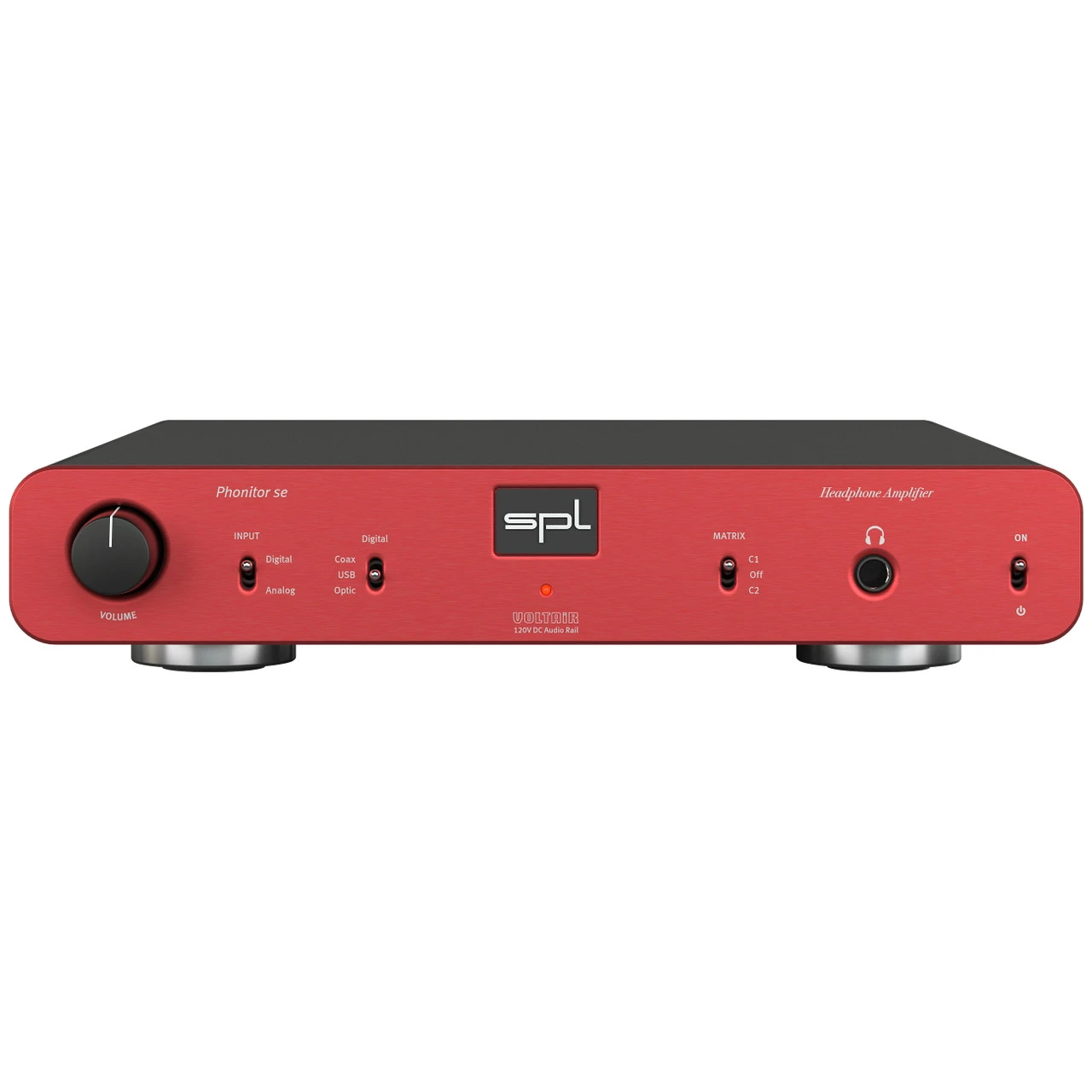

• Red

Volume & Source Selection

The volume is adjusted with a milled all-aluminium rotary knob. The Alps RK27 “Big Blue” potentiometer provides a pleasant “spoon in honey” turning feeling.

In addition to an analog source, three other digital sources can be connected to the Phonitor se with the optional DAC.

Headphone Output with Power

The Phonitor se offers a 6.35 mm jack for connecting headphones with jack plug.

Up to 2 x 5 watts of output power is available at this socket. This allows even very power-hungry headphones such as magnetostats or electrostats to be driven effortlessly.

The Revolution

in the headphone amplifier is the Phonitor Matrix, with switchable crossfeed, that allows you to listen to music through headphones with the sound experience of listening through speakers.

The tiring super stereo effect and the exaggerated reproduction of reverberation and effects are a thing of the past.

Enjoy your music without fatigue and exactly as it should be heard.

The Phonitor Matrix in its largest expansion stage has three setting parameters: Crossfeed, Speaker Angle and Center Level.
In Phonitor se the Center Level is preset to -1 dB and the speaker placement Angle to 30°. These are the most common values.

The Crossfeed function determines the crosstalk of the channels, the so-called interaural level difference. There are two switch positions C1 and C2 for the intensity of the Crossfeed.

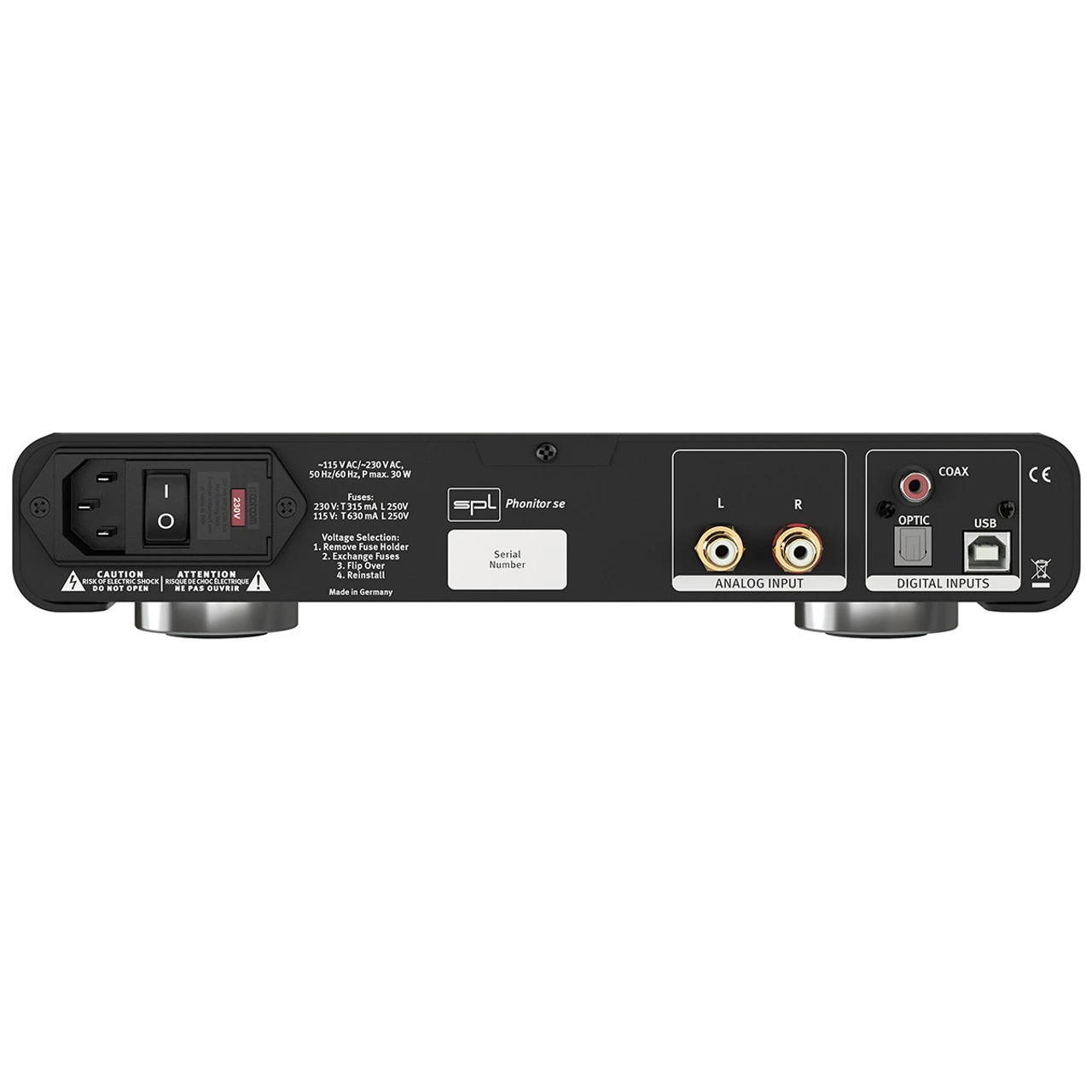

Connections

The Phonitor se is equipped with gold-plated RCA sockets for the analog input.

The optional DAC768xs adds three more digital sources: USB Coax and Optical.

The Optional DAC768xs (not included in analog only version)

The highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip is used as the converter chip in the optional digital-to-analogue converter, which thanks to its new architecture reproduces the finest sound details.

It converts PCM audio with a resolution of 32 bits and a sampling rate of up to 768kHz, which corresponds to 16 times the CD resolution. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.

The Drivers

• Mac OS & iOS: No driver installation required for Mac or iOS devices (class compliant).
• *iOS devices must be connected using the Apple camera adapter.
• Windows: To operate with a higher than the standard sample rate this driver installation is required.

Specifications (including digital option)

• Analog input: RCA
• Maximum input gain
• 32.5 dBu
• Input impedance
• 20 kΩ
• Digital Inputs: DAC768xs (optional)
• Coaxial SPDIF (RCA), PCM sample rates
• 44.1/48/88.2/96/176.4/192 kHz
• Optical SPDIF (Toslink F06), PCM sample rates
• 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
• USB (B), PCM sample rates
• 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
• USB (B), DSD over PCM (DoP), sample rates
• 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
• 0 dBFS calibrated to
• 15 dBu
• Standard Headphones Output, 6.35 mm (1/4″) TRS Jack
• Wiring
• Tip = Left, Ring = Right, Sleeve = GND
• Source impedance
• 0.18 Ω
• Damping factor (40 Ω)
• 180
• Frequency range (-3dB)
• 10 Hz – 300 kHz
• Crosstalk (1 kHz)
• -90 dB
• THD + N (10 Hz – 22 kHz, 0 dBu)
• 0.00091 %
• Noise (A-weighted)
• -103 dBu
• Output power (1 kHz, 1% THD, 600 Ω)
• 2 x 2.7 W
• Output power (1 kHz, 1% THD, 300 Ω)
• 2 x 5 W
• Output power (1 kHz, 1% THD, 32 Ω)
• 2 x 1 W
• Dynamic range
• 135.5 dB
• Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage for analog audio
• +/- 60 V
• Operating voltage for relays and LEDs
• +12 V
• Operating voltage for DAC768xs
• +7 V, +3.3 V
• Mains Power Supply
• Mains voltage (selectable, see fuse chamber)
• 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V
• T 315 mA
• Fuse for 115 V
• T 630 mA
• Power consumption
• max. 30 VA
• Stand-by power consumption
• < 0,3 W
• Dimensions & Weight
• W x H x D (width x height incl. feet x depth)
• 278 x 57 x 330 mm
• 11 x 2.24 x 13 inch
• Unit weight
• 2,8 kg
• 6.17 lbs
• Shipping weight (incl. packaging)
• 5 kg
• 11.02 lbs
