Redco R196-D25PG DB25 96pt TT Patchbay

96pt TT Patchbay with DB25 25 pin D-sub connectors on rear.

Features And Benefits

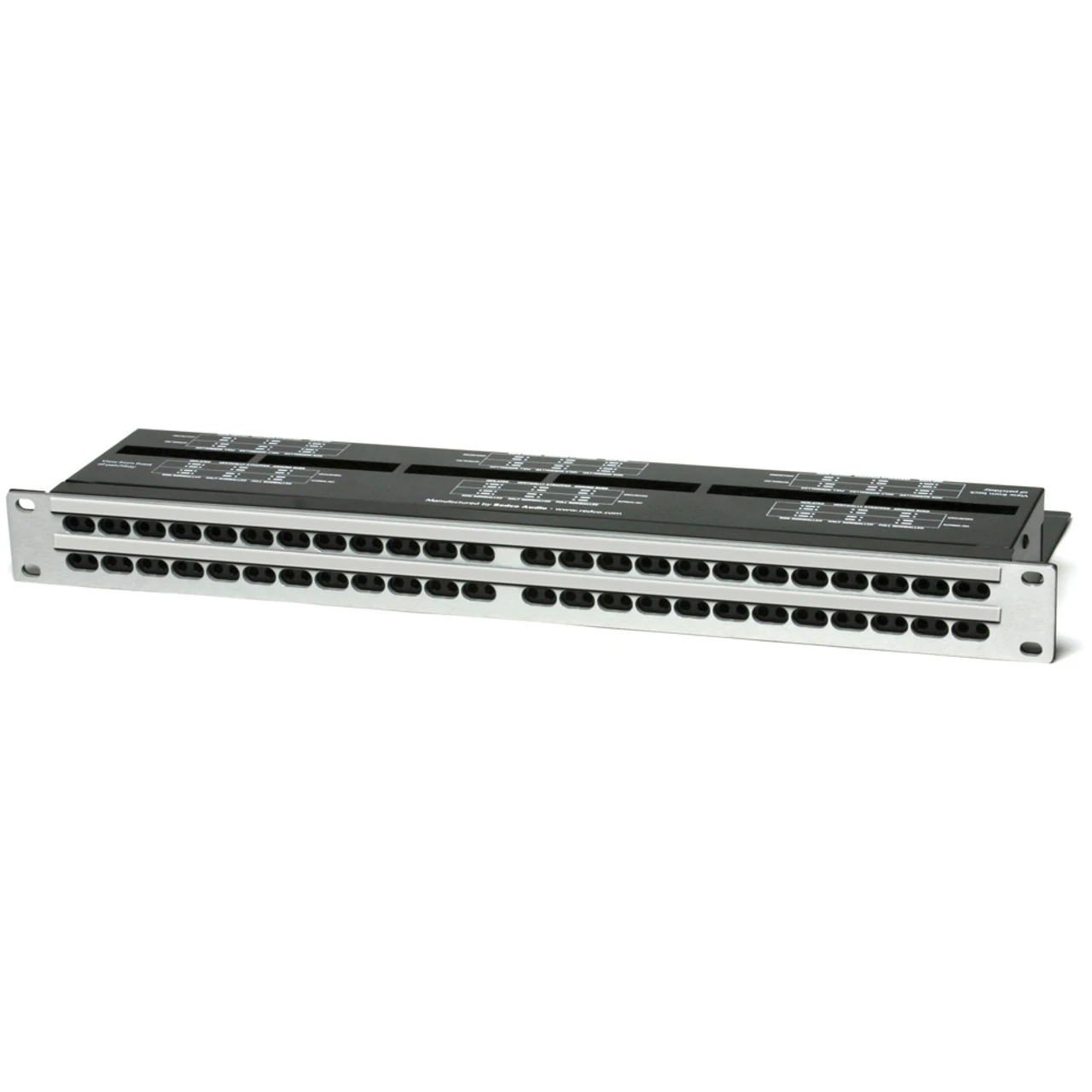

• The Redco R196-D25PG 96 point Bantam Patchbay has two rows of 48 Bantam Jacks in 1U of rack space. The TT connectors are stereo spaced for easy identification.

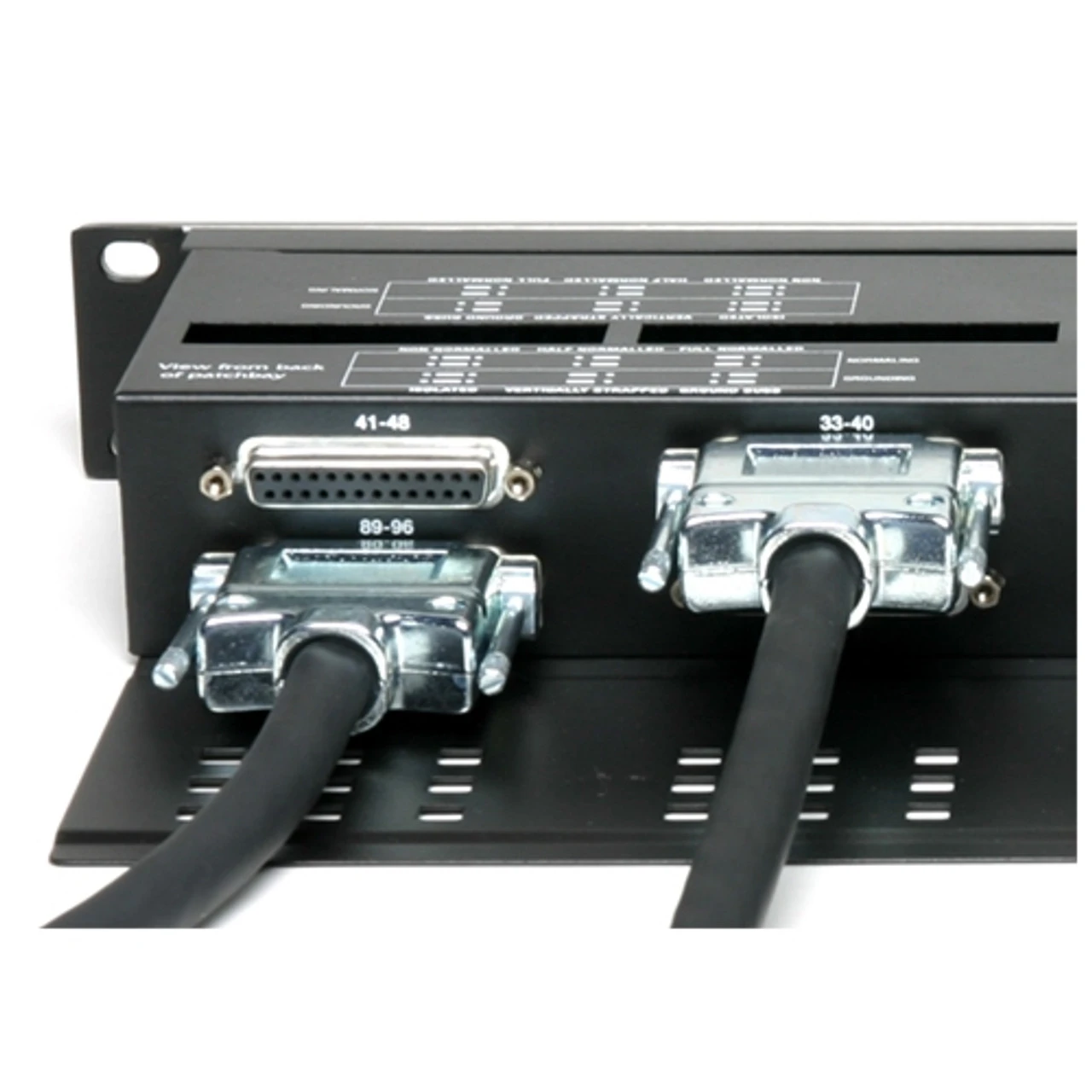

• The R196-D25PG 1U patchbay connects to equipment and outboard gear utilizing the industry standard 25 pin D-sub Tascam pinout on all rear D-sub connectors.
• Programmable Grounding/Normalling switches are easily accessed from the top of the chassis.
• Convenient cable support tray for cable stress relief is part of the patchbay frame.
• All 25 pin D-sub securing hardware is American 4-40 threading

Dimensions

• With tray: 19″W x 1.75″H x 8″D
• Tray removed: 19″W x 1.75″H x 6″D

Available Finish

• Silver (stock)
• Black (special order)

DOWNLOAD LABELING TEMPLATE

**ATTENTION MAC USERS**  When printing the label template on a MAC, you MUST reduce print ratio to 90%
