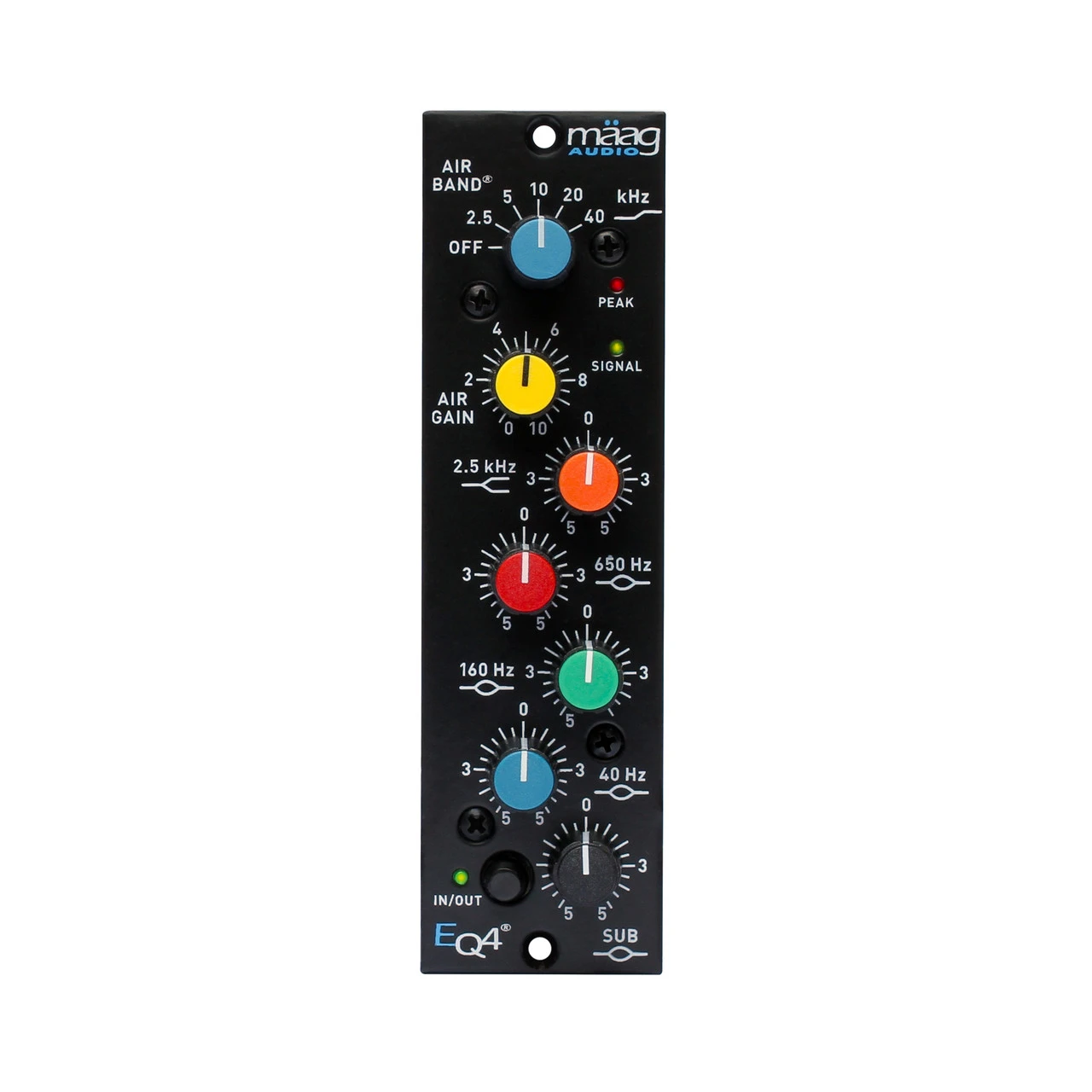

Maag Audio EQ4 Black

Get some control up and down the scale with this API 500 Lunchbox EQ!

This is the black face plate version.

The new EQ4 (500 Series) is a one channel 6 band equalizer with AIR BAND (shelf boost from 2.5 to 40kHz), compatible with the API 500-6B lunchbox and 500VPR rack systems.

Following its EQ3 and EQ3-D predecessors, the EQ4 provides unparalleled transparency and top end presence while maintaining the true natural sound behind the mix. EQ adjustments are obtained with minimal phase shift and detent controls allow for easy recallable settings.

Presented in the flagship lunchbox portable format, the EQ4 offers the legendary AIR BAND and five other sonically superior band passes.

Maag Audio EQ4 Specifications

• Frequency Response: -3 dB points, 10Hz & 75kHz
• Nominal Input Impedance XLR): 48 K Ohms, balanced
• Nominal Output Impedance (XLR): 50 Ohms, balanced
• Headroom: +27 dBu
• Maximum Phase Shift: 30°
• THD + Noise: < 0.005%
