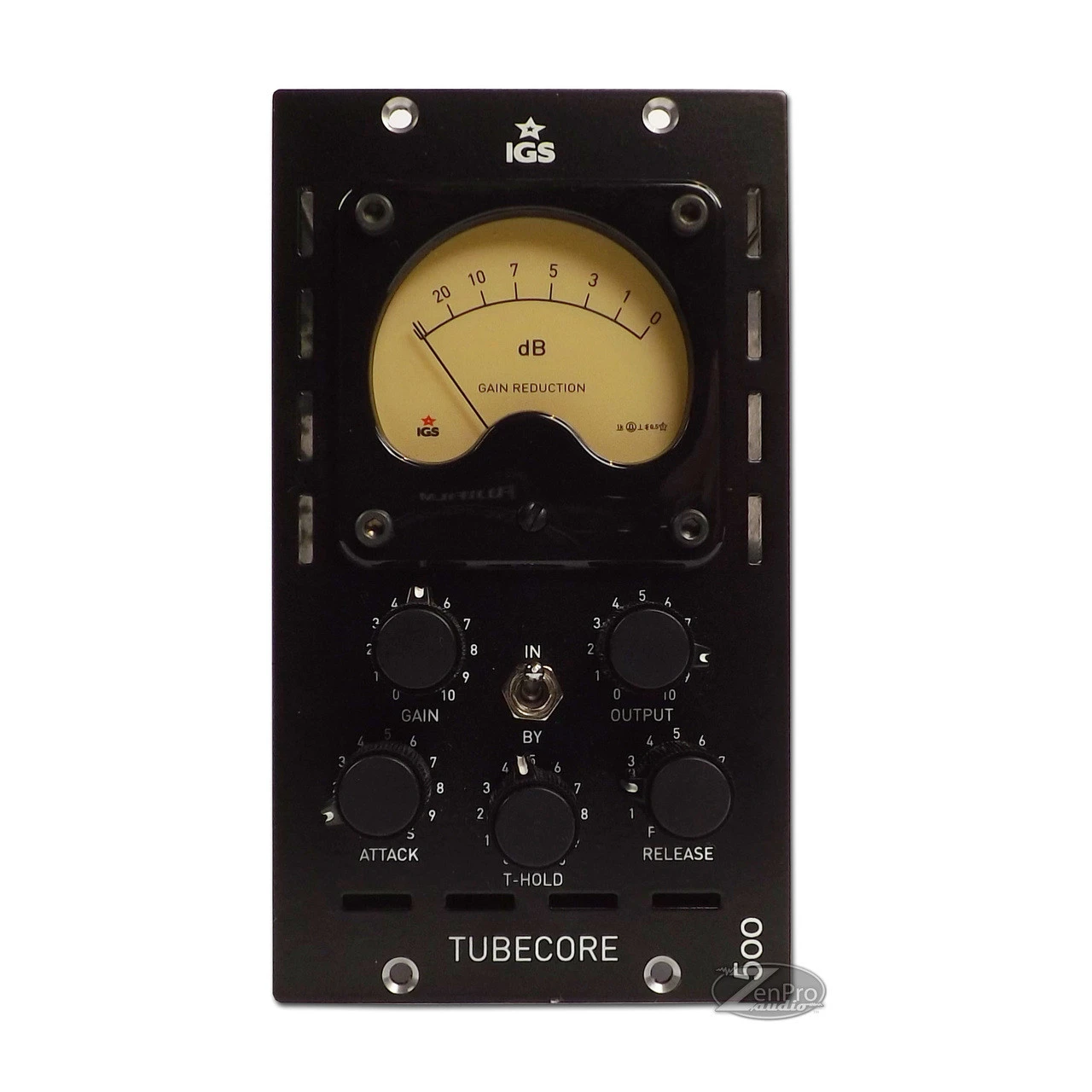

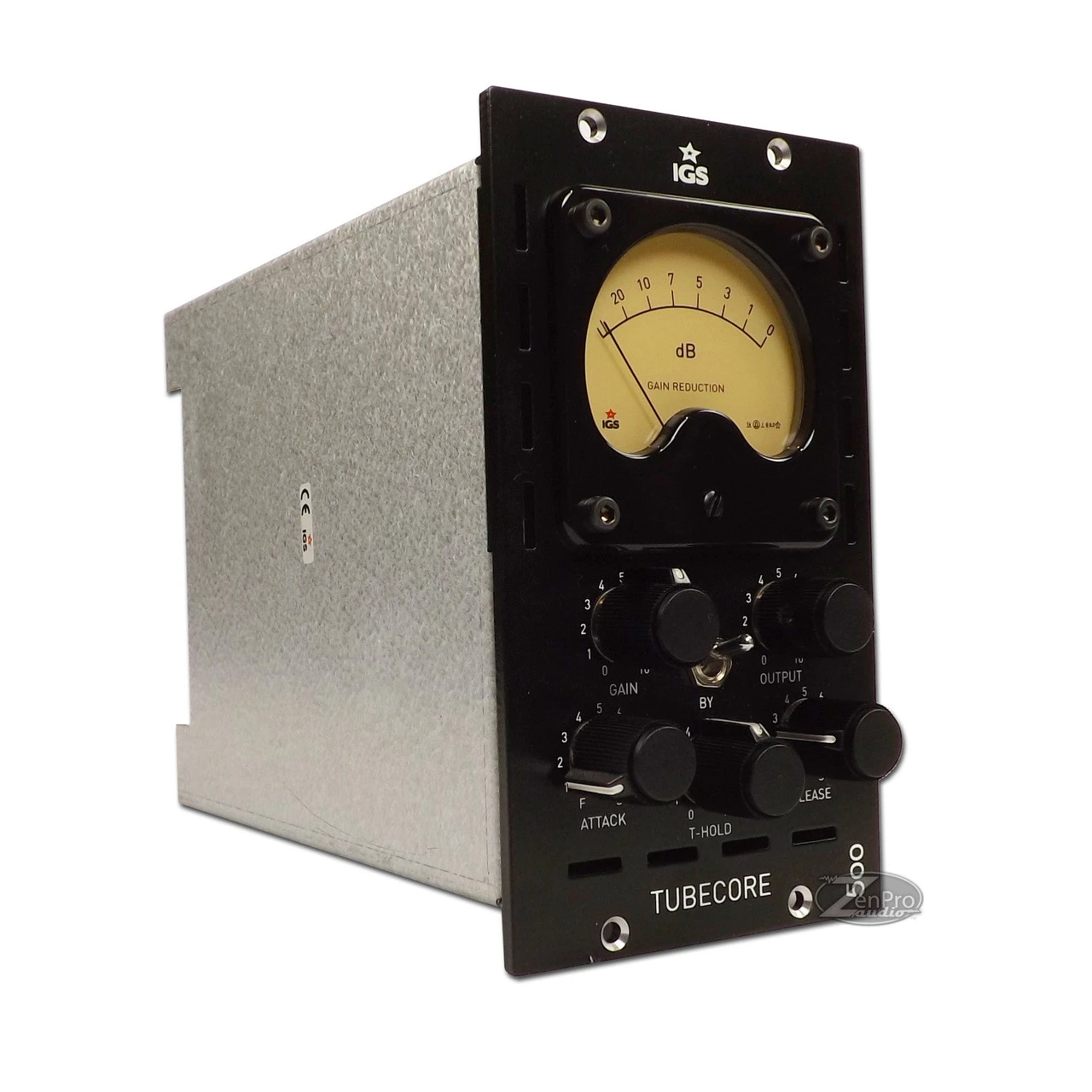

IGS Audio Tubecore 500

The TUBECORE 500 is a full symmetric transformer balanced 500-series compressor. The structure is based on the typical vari mu solution. The TUBECORE 500 is a true tube mono compressor where compression is achieved using the remote cut-off of tube biasing. Could be used as a mono tracking compressor or (as a matched pair) as an advanced mastering tool.

Features

• VU METER – Big VU meter showing the amount of gain reduction.
• THRESHOLD – Above this level of the input signal the compression will occur. Use it to control the amount of compression.
• ATTACK – Time delay between the appearance of the signal and the compressor reaction.
• RELEASE – Time delay between the disappearance of the signal and the compressor reaction.
• GAIN – Input gain knob.
• OUTPUT – Output level knob.

Specifications

• Fully symmetric design, from Input to Output,
• Precise analog scales and ultra fast VU Meters,
• Frequency response +/-0.2dB: 20Hz-20KHz,
• Release: 0.1s – 4s,
• Attack: 10 – 300 ms,
• Max. gain: 35dB,
• Input – Transformer,
• Output – Transformer
• Shipping weight 2 kg
